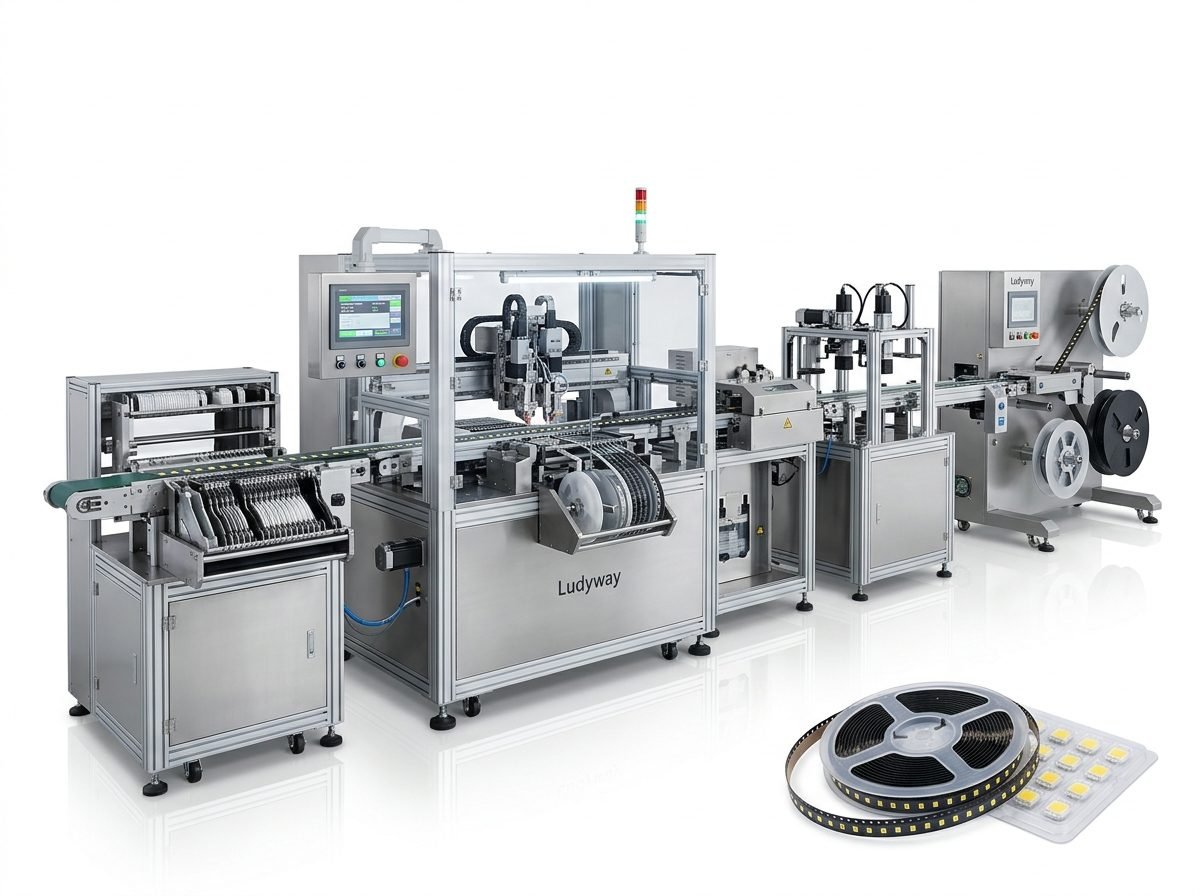

Automated LED Component Packaging Lines for SMD & COB Modules

Automated LED Component Packaging Lines for SMD & COB Modules

Ludyway presents its state-of-the-art Automated LED Component Packaging Lines, engineered to deliver precision, speed, and reliability for the high-volume production of SMD (Surface-Mount Device) and COB (Chip-on-Board) LED modules. Leveraging over 30 years of packaging machinery expertise, these fully integrated production lines are designed to handle the delicate and demanding requirements of modern LED component packaging. From feeding and precise placement to final sealing and inspection, our automated solutions ensure consistent quality, minimize human error, and maximize throughput for electronics manufacturers globally.

Product Features

Our Automated LED Packaging Lines incorporate cutting-edge technology and robust design to meet the rigorous standards of the electronics industry. The system is built for seamless integration into existing production workflows, offering unparalleled efficiency and control.

• High-Speed Precision Placement: Advanced vision systems and servo-driven mechanisms guarantee accurate pick-and-place of SMD and COB components onto tapes, reels, or trays with micron-level precision, ensuring zero defects in component orientation and positioning.
• Fully Automated Operation: The line features automated feeding, packaging, sealing, and inspection modules, significantly reducing manual labor, operational costs, and the risk of contamination or damage to sensitive LED components.
• Intelligent Vision Inspection: Integrated high-resolution cameras perform real-time quality checks for component presence, polarity, marking, and placement accuracy, automatically rejecting faulty products to maintain exceptional output quality.
• Flexible & Modular Design: Easily configurable to handle various package types (tape-and-reel, blister, tray) and different LED component sizes. Quick changeover capabilities minimize downtime between production runs.
• Robust Data Tracking & MES Integration: Equipped with industrial PC and HMI for real-time monitoring of production data, OEE (Overall Equipment Effectiveness), and traceability. Supports seamless integration with Manufacturing Execution Systems (MES) for smart factory operations.
• Durable & Low-Maintenance Construction: Built with high-grade materials and precision components in our 20,000㎡ facility, ensuring long-term stability, minimal maintenance requirements, and consistent performance in 24/7 production environments.

Technical Specifications

Application Fields

Ludyway’s Automated LED Component Packaging Lines are essential for manufacturers seeking to optimize their production of advanced lighting and display products. These systems are deployed across a wide spectrum of industries where reliable, high-quality LED packaging is critical.

• General Lighting: Automated packaging of SMD LEDs for LED bulbs, tubes, panels, and downlights.
• Automotive Lighting: High-precision handling and packaging of LEDs for automotive headlights, tail lights, interior lighting, and indicators.
• Consumer Electronics: Packaging for LEDs used in backlighting units (BLU) for TVs, monitors, laptops, and smartphones.
• Signage & Display: Efficient packaging for COB modules and high-density SMDs used in indoor/outdoor LED displays, digital billboards, and traffic signs.
• Industrial & Special Lighting: Reliable packaging solutions for LEDs utilized in UV curing, horticultural lighting, medical devices, and industrial equipment lighting.
