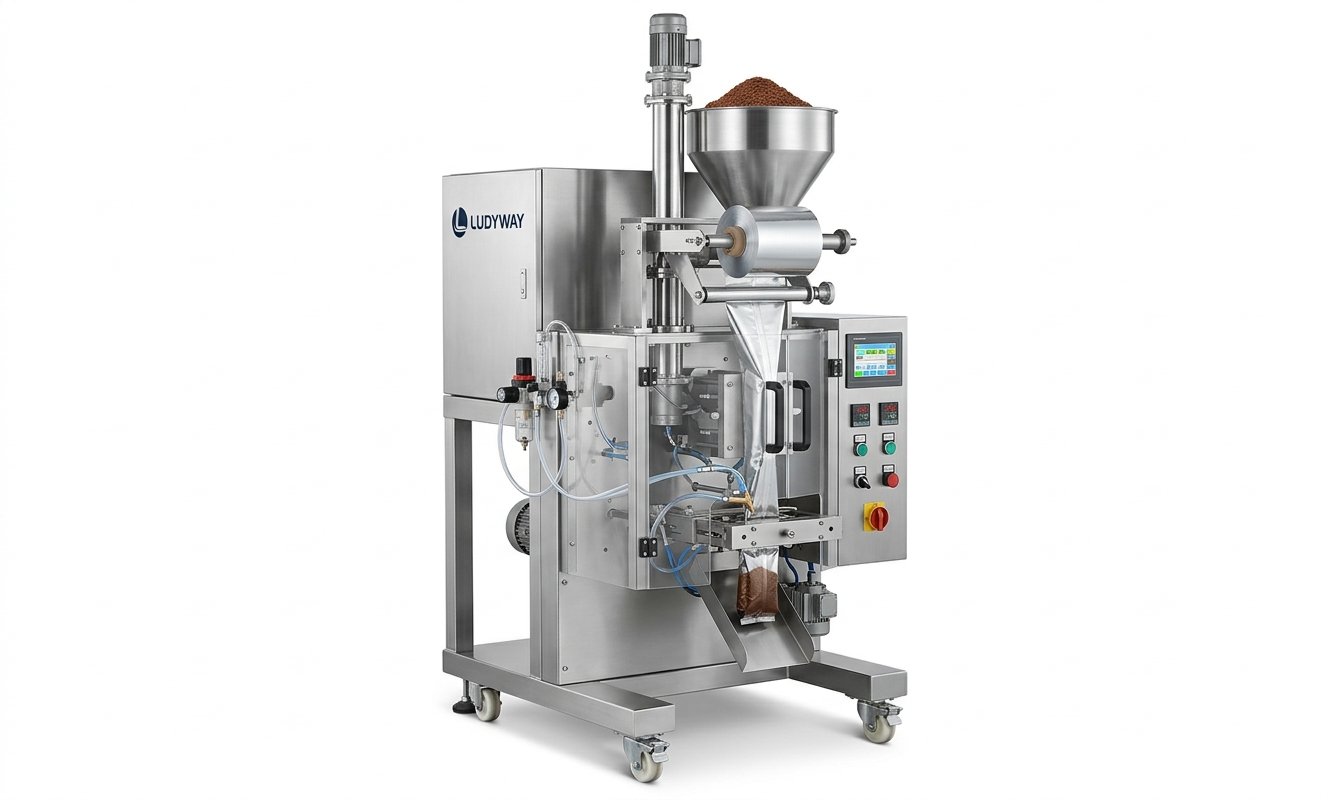

Vertical Coffee Powder Packing Machine with Nitrogen Flush

Product Introduction

The Vertical Coffee Powder Packing Machine with Nitrogen Flush is an advanced packaging solution specifically engineered for the unique demands of coffee production. Unlike standard fillers, this vertical form fill seal (VFFS) machine integrates a precision nitrogen flushing system that actively displaces oxygen within each pouch, preserving the volatile aromatic oils and preventing oxidative staleness. Designed for roasters, packers, and co-packers, this machine handles both fine espresso grinds and coarser filter coffee with exceptional accuracy. The touchscreen-controlled unit automatically forms, fills, seals, and cuts pillow, gusset, or quad-seal bags. With a hygienic stainless steel frame and quick-release seal jaws, it reduces changeover time between coffee varieties. The nitrogen flush not only extends shelf life up to 18 months but also creates a protective cushion that prevents powder clogging in the seal area. Optional gas analyzers and code daters can be integrated for fully traceable, modified atmosphere packaging (MAP).

Key Features

1. Integrated Nitrogen Flush System: Two-stage gas purging reduces residual oxygen to under 2%, preserving coffee freshness and flavor without needing vacuum chambers. 2. Precision Volumetric Cup Filler: Servo-driven measuring cups adjust from 5g to 500g with ±0.5g accuracy, handling both oily and dry coffee powders without bridging. 3. Multi-Bag Style Capability: Creates pillow bags, stand-up pouches, zipper-attached bags, and quad-seal packs using the same film roll. 4. Smart Temperature Control: Independent heating zones for the back, bottom, and fin seals maintain consistent sealing across different laminate films (PET/AL/PE, kraft paper). 5. Automatic Film Tracking: Photoelectric sensor corrects film deviation in real time, reducing material waste by up to 8%. 6. Easy-Clean Design: Removable cup filler and open-frame structure allow quick access for flavor changeovers; all contact parts are food-grade stainless steel. 7. User-Friendly HMI: 7-inch color touchscreen stores up to 50 recipes for different coffee grind sizes and bag dimensions. 8. Low Oxygen Alarm: Optional inline gas analyzer triggers warning if nitrogen flow drops, ensuring every batch meets shelf-life specs.

Technical Specifications

Product Applications

This vertical coffee powder packing machine with nitrogen flush is purpose-built for the coffee industry but also adapts to other oxygen-sensitive powders. Primary applications include: single-origin and espresso blends (packed into 250g pillow bags for retail shelves), bulk coffee for food service (1kg stand-up pouches with degassing valves), and premium organic coffee requiring extended 24-month shelf life. It is equally effective for nitrogen flushing of matcha powder, protein powders, and fine cocoa mixes where oxidation causes discoloration. Small to medium roasteries use it to offer customized bag sizes without expensive pre-made pouches. For contract packers, the machine’s ability to switch between quad-seal and pillow bags in under 10 minutes makes it ideal for short-run private label orders. The system also supports MAP for roasted whole beans, replacing oxygen with nitrogen to prevent lipid rancidity. Additional applications include instant coffee sachets (15-30g stick packs using a modified forming tube) and cold brew powder blends that clump easily—the nitrogen flow doubles as a fluidizing agent to keep powder free-flowing. With optional gusset devices, it can produce side-gusseted bags that stand upright for premium store displays. The machine’s all-stainless construction also meets GMP standards for nutraceutical powders, offering a versatile solution for any manufacturer seeking fresh-lock packaging without vacuum chambers.
