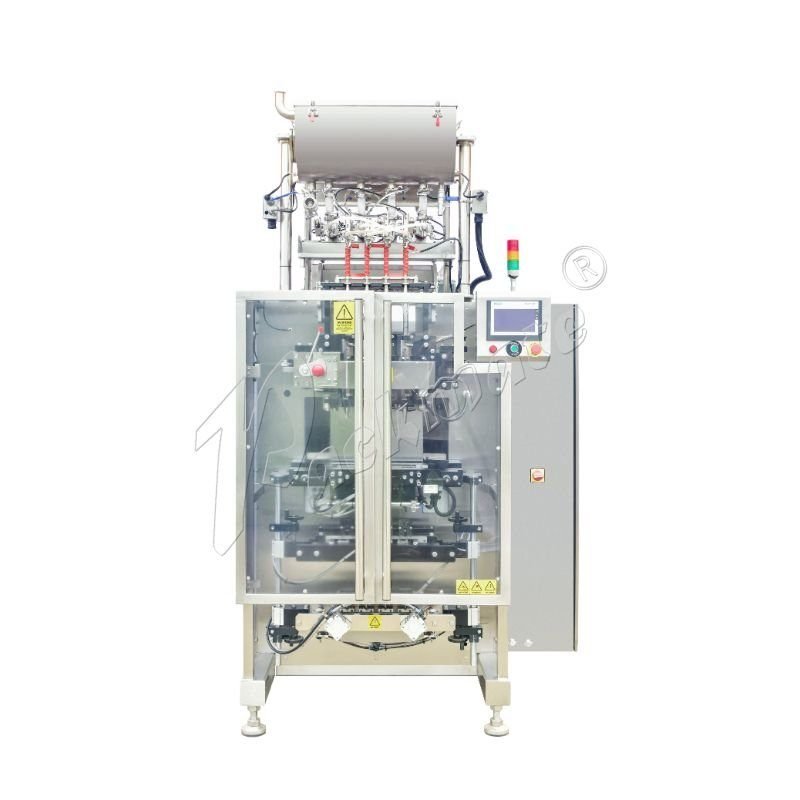

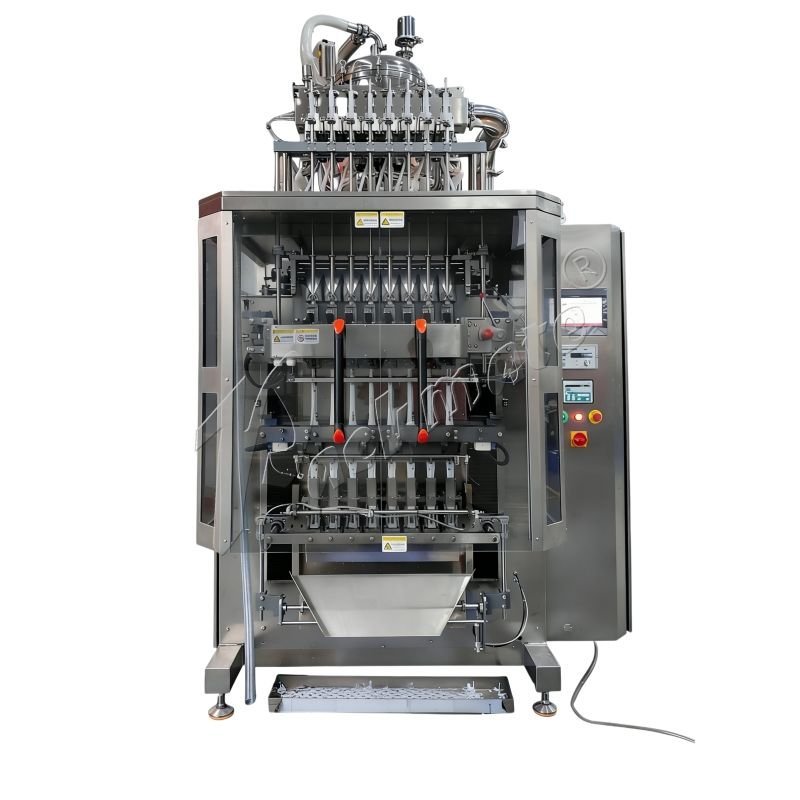

Multi-Lane Strip Bag Packaging Machine
The Multi-Lane Strip Bag Packaging Machine represents a pinnacle of modern industrial design, engineered for high-speed, flexible, and hygienic packaging operations. Constructed from premium 304/316 stainless steel, its robust frame features fully welded and polished joints alongside a brushed surface, ensuring exceptional durability and facilitating stringent hygiene protocols. Rounded corners and chamfered edges enhance operator safety and streamline cleaning procedures. Integrated safety systems, including three-color alarm lights, Panasonic safety door detection switches, and an emergency stop mechanism, guarantee reliable and secure production cycles, making it a cornerstone for demanding packaging environments.
Product Features
This machine is distinguished by its exceptional adaptability and performance. Engineered for versatile applications, it supports integration with various precision metering systems such as liquid pumps, powder fillers, granule dispensers, or multi-head weighers, allowing seamless adaptation to diverse product types and specific packaging needs. Its innovative 8-lane strip bag design dramatically elevates output, achieving packaging speeds of up to 120 packs per minute, thereby offering a substantial efficiency leap over conventional single-lane equipment. The commitment to hygiene and durability is paramount, with an all-stainless-steel construction that meets rigorous sanitary standards. The polished, fully welded frame ensures long-term resilience, while comprehensive safety features, including sensors and emergency protocols, provide robust protection for both operators and the machinery itself.
Technical Specifications
| Parameter | Specification |
|---|---|
| Packaging Material | Customer-Specified Composite Films |
| Packaging Range | Customizable per Product Requirements |
| Packaging Speed | 40–45 cuts/min (Product-Dependent) |
| Packaging Film Width | 640 mm |

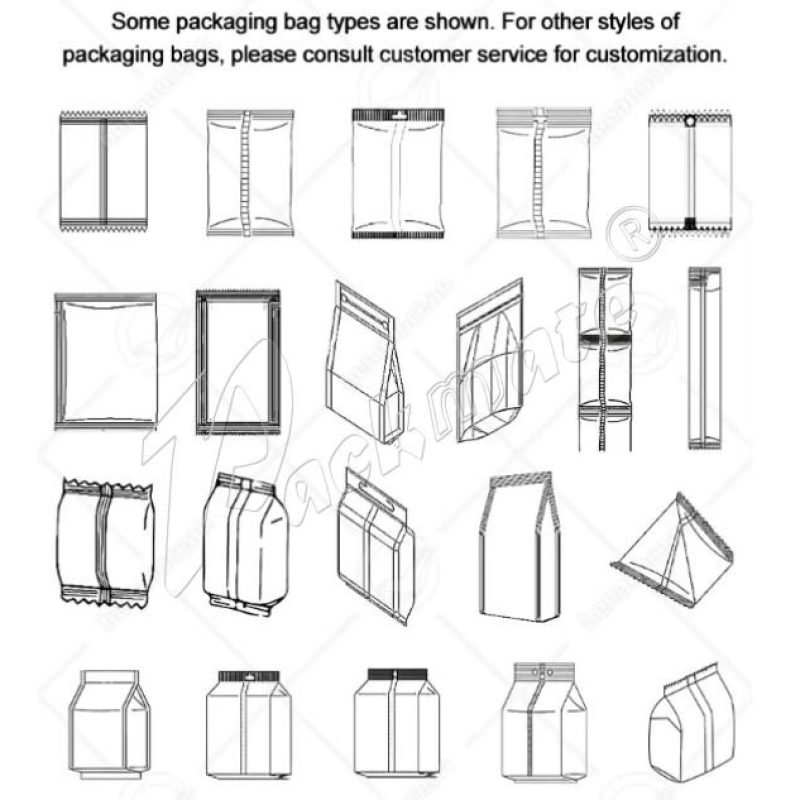

| Bag Size | Width: 35 mm × Length: 50–150 mm |

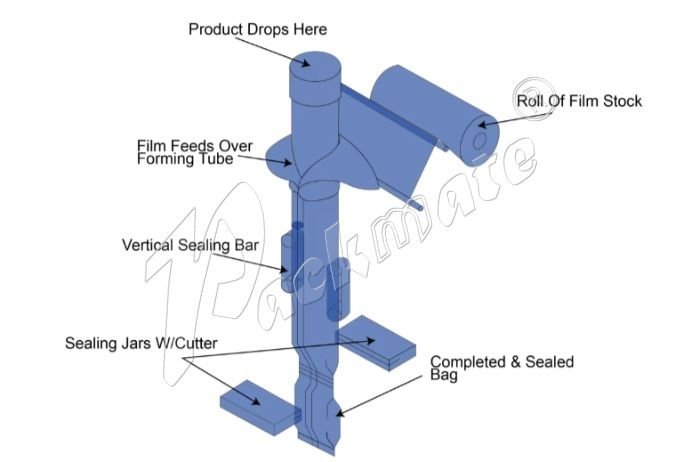

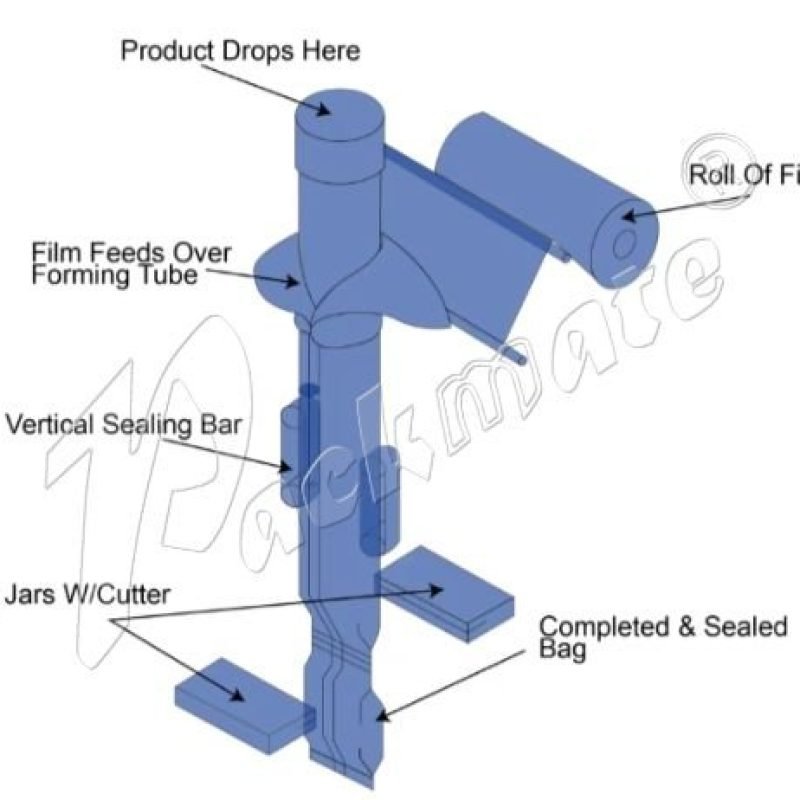

| Sealing Method | Side Seal |
| Back Seal Width | 10 mm Straight Line (1.0 mm Spacing) |
| Horizontal Seal Width | 10 mm Straight Line (1.0 mm Spacing) |

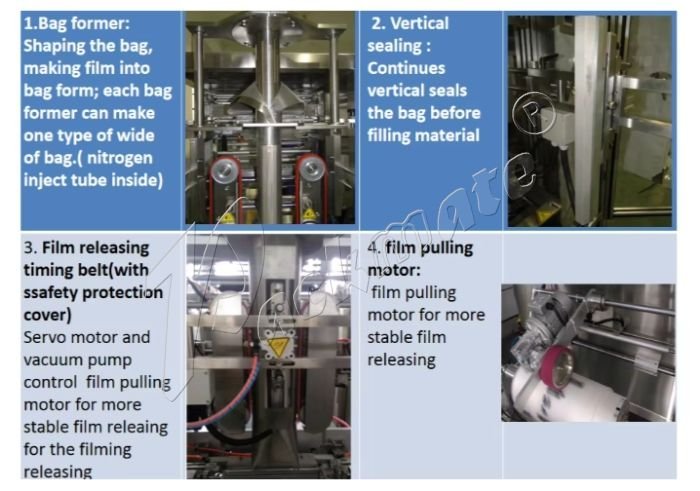

| Cutting Method | Servo-Controlled Tooth Cutting (Center of Horizontal Seal) |
| Bag Pulling Method | Servo Motor with Synchronous Belt Drive |
| Horizontal Sealing | Servo Motor Following Bag Pulling Motion |
| Vertical Sealing | Servo Motor with Roller Pressure System |
| Operating Voltage | 380V / 50Hz (Power Varies by Lane Configuration) |
Customizable Configuration Options
| Configuration Type | Available Options |
|---|---|
| Metering System | Liquid Pump, Powder Filler, Granule Filler, Multi-Head Weigher |
| Packaging Material | Various Composite Films Tailored to Product Needs |
| Lane Quantity | Configurable Lane Setup |
| Bag Length | Adjustable per Product Specifications |
| Safety Features | Safety Door Detection, Emergency Stop System, Alarm Lights |
Application Industries
This high-performance multi-lane packaging machine is extensively utilized across industries requiring efficient, small-sachet packaging at scale. Its primary applications include food and seasoning packaging, sauce and condiment packaging, pharmaceutical and traditional medicine packaging, health product packaging, and chemical powder or granule packaging. It is ideally suited for products such as chili powder, liquid sauces and seasonings, traditional Chinese medicine granules, peanuts, and various other small-dose items, delivering unmatched efficiency in multi-lane packaging solutions.
